Price:
Sale price$0.00

Description

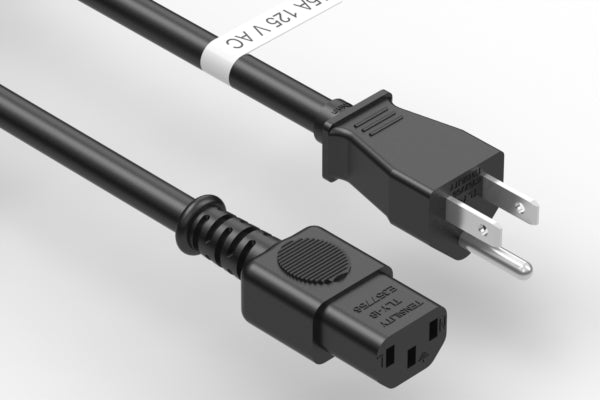

Ac cord, 1000 mm, U.S., Nema 5-15P plug, TLY-13 to C13, 14 AWG, SJT wire, 30-01363

connector type NEMA 5-15P → C13
connector style plug → plug
connector orientation 180°
# of conductors 3
# of connector contacts 3
connector plating nickel
wire outer Ø 9.25 mm
AWG 14
cable style round
shield unshielded
jacket material PVC
color black
insulator color white + black + green
cable length 1000 mm
operating temperature 105 °C
voltage rating 300 V
current rating 15.0 A
features SJT
connector 1 NEMA 5-15P
connector 2 C13
wire part # 30-01363
HTS code 8544.42.9090
unit weight 198.38g
Prop65 Vinyl Chloride
