Description

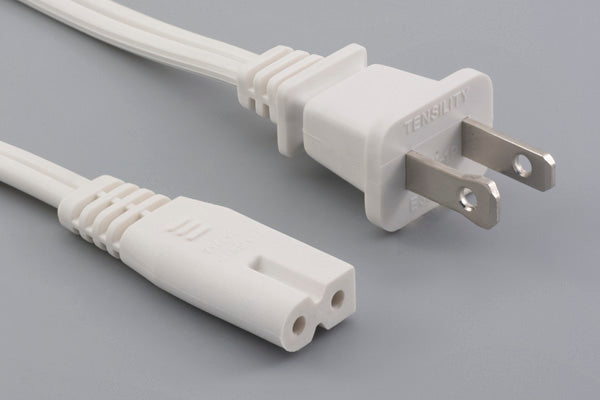

Ac cord, 2000 mm, U.S, NEMA 1-15P plug, TLY-1P to C7, TLY-53, 18 AWG, SPT-2 wire, 30-00247, white

connector type NEMA 1-15P → C7
connector style plug → plug
connector orientation 180°
# of conductors 2
# of connector contacts 2
wire outer Ø 7.05 mm
AWG 18
cable style flat
shield unshielded
jacket material PVC
bend radius 42.3 mm
color white
cable length 2000 mm
operating temperature 105 °C
voltage rating 125 V
current rating 10.0 A
features SPT-2
connector 1 NEMA 1-15P
connector 2 C7
wire part # 30-00247
HTS code 8544.42.9090
unit weight 111.67g
Prop65 Vinyl Chloride
