Description
Description

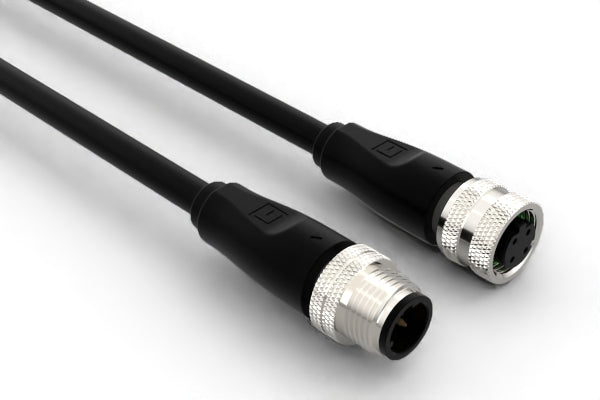

Cable, 1000 mm, M12 D-code plug 4 pin 50-01029 to M12 D-code socket 50-01028, CAT5e, 24 AWG, 30-03677 wire
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | M series |
| connector style | plug → jack |
| connector orientation | 180° |
| M type | M12 |
| # of conductors | 4 |
| # of connector contacts | 4 |
| connector plating | gold |
| connector length | 22.0 mm |
| mounting style | cable mount |
| connector color | black |
| wire outer Ø | 6.0 mm |
| AWG | 24 |
| cable style | round |
| shield | braid + foil |
| color | black |
| insulator color | green + orange + white/green + white/orange |
| cable length | 1000 |
| voltage rating | 48 V |
| current rating | 4.0 A |
| cycle rating | 500 |
| UL style | 20387 |
| connector 1 | 50-01029 |
| connector 2 | 50-01028 |
| wire part # | 30-03677 |
| HTS code | 8544.42.9090 |
| Prop65 | Nickel |
