Description
Description

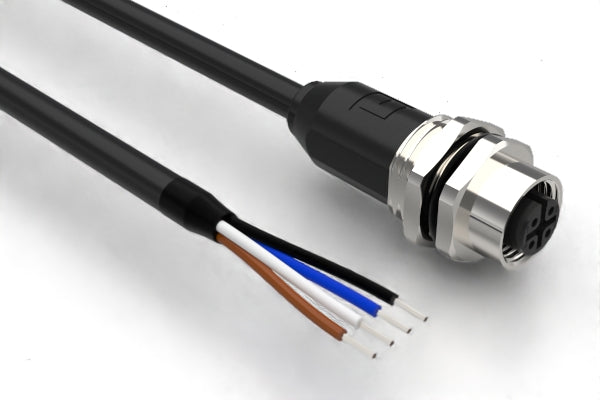

Cable, 2000 mm, M12 A-code socket 4 pin panel mount 54-00540 to 5 mm tinned, 22 AWG, 30-03673 wire
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | M series |
| connector style | jack → tinned |
| connector orientation | 180° |
| M type | M12 |
| # of conductors | 4 |
| # of connector contacts | 4 |
| connector plating | Gold |
| connector coding | A |
| connector length | 27.2 mm |
| mounting style | panel mount |
| connector color | black |
| AWG | 22 |
| cable style | round |
| shield | unshielded |
| jacket material | PVC |
| bend radius | 33.6 |
| color | Black |
| insulator color | white + black + blue + brown |
| cable length | 2000 mm |
| operating temperature | -40~105 °C |
| voltage rating | 250 V |
| current rating | 4.0 A |
| cycle rating | 1000 |
| UL style | 20387 |
| features | panel mount |
| connector 1 | 54-00540 |
| connector 2 | stripped and tinned |
| wire part # | 20250802007 |
| HTS code | 8544.42.9090 |
| Prop65 | Vinyl Chloride |
