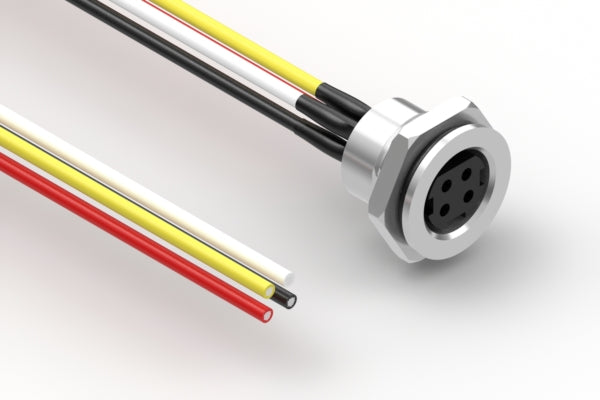

Cable, 305 mm, 4P 54-00416 power DIN to stripped and tinned, 18 AWG, UL 11028 hook up wire
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | din |
| connector style | jack to tinned |
| connector orientation | 180° |
| # of conductors | 1 |
| # of connector contacts | 4 |
| connector center pin Ø | 1.6 mm |
| connector plating | nickel |
| mounting style | panel mount |
| connector color | black |
| AWG | 18 |
| cable style | round |
| jacket material | mPPE |
| insulator color | white + black + red + yellow |
| cable length | 305 mm |
| operating temperature | -20~80 °C |
| voltage rating | 48 V |
| current rating | 8.0 A |
| cycle rating | 500 |
| UL style | 11028 |
| connector 1 | 54-00416 |
| connector 2 | blunt cut |
| HTS code | 8544.42.9090 |
| unit weight | 23.20g |
| Prop65 | Nickel |
