Description

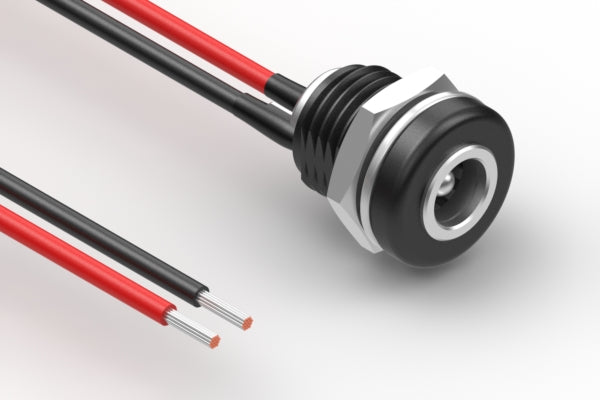

Cable, 305 mm, 5.5x2.5 mm 54-00402 dc panel mount jack to stripped and tinned, 18 AWG, UL 1332 hook-up wire
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | dc |
| connector style | jack → tinned |
| connector orientation | 180° |
| # of conductors | 1 |
| # of connector contacts | 2 |
| connector center pin Ø | 2.5 mm |
| connector plating | nickel |
| connector length | 17.6 mm |
| mounting style | panel mount |
| connector color | black |
| AWG | 18 |
| cable style | round |
| shield | unshielded |
| jacket material | FEP |
| insulator color | red + black |
| cable length | 305 mm |
| operating temperature | -50~200 °C |
| voltage rating | 48 V |
| current rating | 11.5 A |
| cycle rating | 5000 cycles |
| UL style | 1332 |
| connector 1 | 54-00402 |
| connector 2 | stripped and tinned |
| HTS code | 8544.42.9090 |
| unit weight | 16.00g |
| Prop65 | Nickel |
