Description

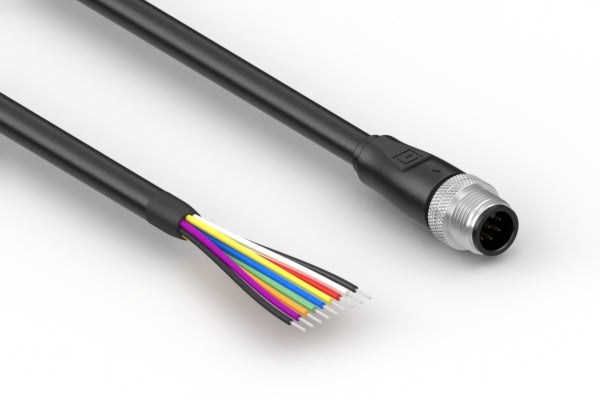

Cable, 1500 mm, 0.8 mm 8C 50-00990 M12 plug to 5 mm tinned, 24 AWG, 30-03039 wire, shielded
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | M series |
| connector style | plug to tinned |
| connector orientation | 180° |
| M type | M12 |
| # of conductors | 8 |
| # of connector contacts | 8 |
| connector center pin Ø | 0.8 mm |
| connector plating | gold |
| connector coding | A |
| connector length | 22.0 mm |
| mounting style | cable mount |
| connector color | black |
| AWG | 24 |
| cable style | round |
| shield | braid + foil |
| jacket material | TPU |
| color | black |
| insulator color | red + black + white + yellow + blue + green + orange + purple |
| cable length | 1500 mm |
| operating temperature | -40~105 °C |
| voltage rating | 250 V |
| current rating | 4.0 A |
| UL style | 21765 |
| connector 1 | 50-00990 |
| connector 2 | stripped and tinned |
| wire part # | 30-03039 |
| HTS code | 8544.42.9090 |
| unit weight | 123.80g |
| Prop65 | Vinyl Chloride |
