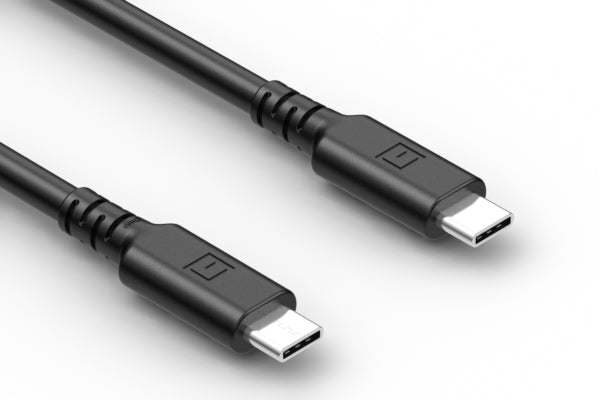

Cable, 2000 mm, 50-01071 USB C plug to 50-01061 USB C plug, 30-03508 wire, shielded, USB 3.2 Gen 1x1
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | usb |
| connector style | plug → plug |
| connector orientation | 180° |
| # of conductors | 16 |
| # of connector contacts | 16 |
| AWG | 32 |
| cable style | round |
| shield | braid + foil |
| jacket material | TPE |
| color | black |
| insulator color | white + blue (4P) + white + green + yellow + purple + brown + blue + black + red |
| cable length | 2000 mm |
| operating temperature | 80 °C |
| voltage rating | 20 V |
| current rating | 3.0 A |
| connector 1 | 50-01071 |
| connector 2 | 50-01061 |
| wire part # | 30-03508 |
| HTS code | 8544.42.9090 |
| unit weight | 96.75g |
| Prop65 | Nickel |
