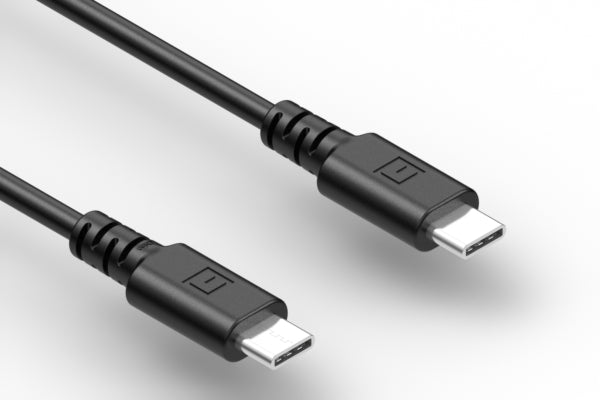

Cable, 1000 mm, 50-01064 USB C plug to same, 30-03504 wire, shielded, USB 2.0
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | usb |
| connector style | plug → plug |
| connector orientation | 180° |
| # of conductors | 5 |
| # of connector contacts | 5 |
| AWG | 30 |
| cable style | round |
| shield | braid + foil |
| jacket material | TPE |
| color | black |
| insulator color | green + white + blue + black + red |
| cable length | 1000 mm |
| operating temperature | 80° C |
| voltage rating | 20 V |
| current rating | 3.0 A |
| connector 1 | 50-01064 |
| connector 2 | 50-01064 |
| wire part # | 30-03504 |
| HTS code | 8544.42.9090 |
| Prop65 | Nickel |
