Price:
Sale price$0.00

Description

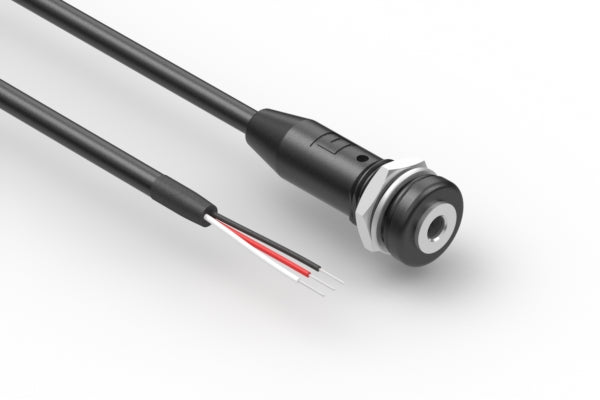

Cable, 305 mm, 3.5 mm panel mount stereo jack 50-00945 to stripped and tinned, 28 AWG, 30-00177, IP67

connector type audio-video
connector style jack → tinned
connector orientation 180°
# of conductors 3
# of connector contacts 3
connector center pin Ø 3.5 mm
connector outer Ø 7.8 mm
connector plating nickel
connector length 25.8 mm
mounting style panel mount
connector color black
wire outer Ø 3.8 mm
AWG 28
cable style round
shield spiral + foil
jacket material PVC
bend radius 22.8 mm
color black
insulator color white, red
cable length 305 mm
operating temperature -25~70 °C
voltage rating 30 V
current rating 0.3 A
cycle rating 5000
features panel mount
connector 1 50-00945
connector 2 stripped and tinned
wire part # 30-00177
HTS code 8544.42.9090
unit weight 15.00g
Prop65 Vinyl Chloride
