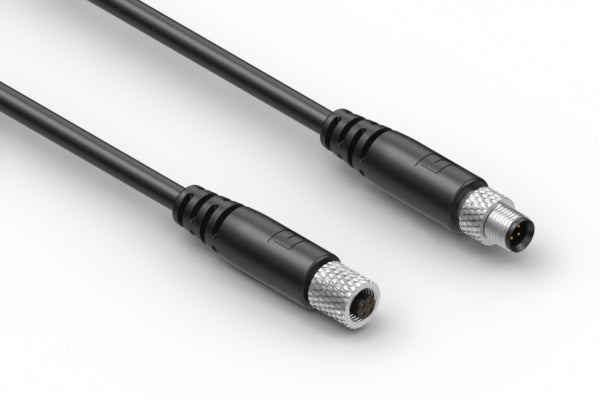

Cable, 915 mm, 0.5 mm 4C 50-00671 M5 plug to 50-00673 M5 socket , 28 AWG, 30-01639 wire, IP67, shielded
| connector type | M series |
| connector style | plug → socket |
| connector orientation | 180° |
| M type | M5 |
| # of conductors | 4 |
| # of connector contacts | 4 |
| connector center pin Ø | 0.5 mm |
| connector plating | gold |
| connector length | 9.1 mm |
| mounting style | cable mount |
| connector color | black |
| wire outer Ø | 3.3 mm |
| AWG | 28 |
| cable style | round |
| shield | spiral + foil |
| jacket material | TPU |
| bend radius | 13.2 mm |
| color | black |
| insulator color | white + green (1P)/black, red(1P) |
| cable length | 915 mm |
| operating temperature | -40~70 °C |
| voltage rating | 60 V |
| current rating | 1.0 A |
| cycle rating | 500 |
| UL style | no |
| connector 1 | 50-00671 |
| connector 2 | 50-00673 |
| wire part # | 30-01639 |
| HTS code | 8544.42.9090 |
| unit weight | 19.50g |
| Prop65 | Nickel |
