Description

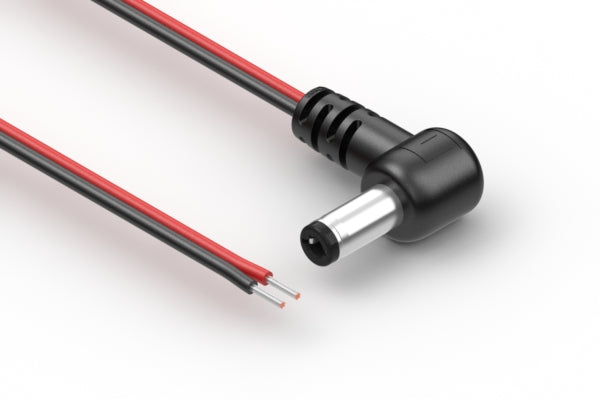

Cable, 1830 mm, 5.5x2.5x12 mm 90° 50-00705 dc plug to 5 mm tinned, 20 AWG, UL21516, 30-03165 wire

connector type dc
connector style plug → tinned
connector orientation 90°
# of conductors 2
# of connector contacts 2
connector center pin Ø 2.5 mm
AWG 20
cable style flat
shield unshielded
jacket material mPPE
bend radius 24 mm
color red + black
cable length 1830 mm
operating temperature -25~105 °C
voltage rating 48 V
current rating 6.5 A
UL style 21516
connector 1 50-00705
connector 2 stripped and tinned
wire part # 30-03164
HTS code 8544.42.9090
Prop65 Nickel
