Price:
Sale price$0.00

Description

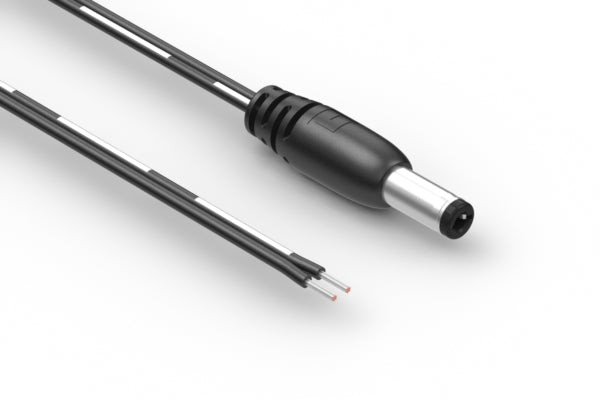

Cable, 1830 mm, 5.5x2.5x12 mm 50-00705 dc plug to 5 mm tinned, 20 AWG, UL21516, 30-03155 wire

connector style plug → tinned
connector orientation 180°
# of conductors 2
# of connector contacts 2
connector center pin Ø 2.5 mm
wire outer Ø 3.6
AWG 20
cable style flat
shield unshielded
jacket material mPPE
bend radius 10.8 mm
color black
cable length 1830 mm
operating temperature -25~105 °C
voltage rating 48 V
current rating 6.5 A
UL style 21516
connector 1 50-00705
connector 2 stripped and tinned
wire part # 30-03154
HTS code 8544.42.9090
unit weight 30.80g
Prop65 Nickel
