Description
Description

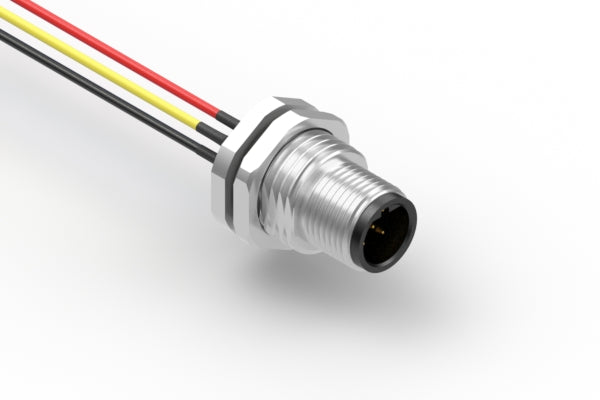

Cable, 305 mm, M12 5C plug B-code panel mount 54-00350 to blunt cut, 22 AWG, UL 11028 hook-up wire
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | M series |
| connector style | plug → blunt cut |
| connector orientation | 180° |
| M type | M12 |
| # of conductors | 5 |
| # of connector contacts | 5 |
| connector center pin Ø | 1.0 mm |
| connector plating | gold |
| connector coding | B |
| locking style | thread lock |
| mounting style | panel mount |
| connector color | black |
| wire outer Ø | 0.0 mm |
| AWG | 22 |
| shield | unshielded |
| bend radius | 0 mm |
| insulator color | red + black + white + yellow + blue |
| cable length | 305 mm |
| operating temperature | -40~105 °C |
| voltage rating | 60 V |
| current rating | 4.0 A |
| cycle rating | 500 |
| UL style | 11028 |
| connector 1 | 54-00350 |
| connector 2 | blunt cut |
| HTS code | 8544.42.9090 |
| unit weight | 30.40g |
| Prop65 | Nickel |
