Description

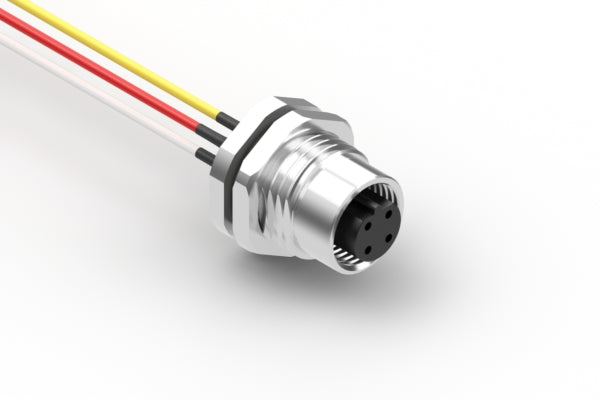

Cable, 305 mm, M12 4C socket B-code panel mount 54-00345 to blunt cut, 22 AWG, UL 11028 hook-up wire

connector type M series
connector style jack → blunt cut
connector orientation 180°
M type M12
# of conductors 4
# of connector contacts 4
connector center pin Ø 1.0 mm
connector plating gold
connector coding B
mounting style panel mount
connector color black
AWG 22
shield unshielded
insulator color red + black + white + yellow
cable length 305 mm
operating temperature -40~105 °C
voltage rating 250 V
current rating 4.0 A
cycle rating 500
UL style 11028
features thread lock
connector 1 54-00345
connector 2 blunt cut
HTS code 8544.42.9090
Prop65 Nickel
