Price:
Sale price$0.00

Description

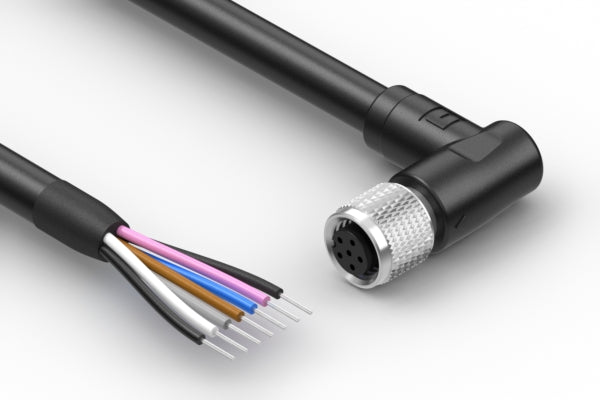

Cable, 500 mm, 0.7 mm 6C 90° 50-01009 M8 socket to 5mm tinned, 26 AWG, 30-02977 wire, shielded

connector style jack → tinned
connector orientation 90°
# of conductors 6
# of connector contacts 6
connector center pin Ø 0.7 mm
connector plating gold
connector coding A
mounting style cable mount
connector color black
wire outer Ø 6.0 mm
AWG 26
cable style round
shield braid + foil
jacket material PVC
bend radius 36 mm
color black
insulator color brown + white + blue + black + gray + pink
cable length 500 mm
operating temperature -40~105 °C
voltage rating 30 V
current rating 1.0 A
cycle rating 1000
UL style 20387
features thread lock
connector 1 50-01009
connector 2 stripped and tinned
wire part # 30-02977
HTS code 8544.42.9090
Prop65 Vinyl Chloride
