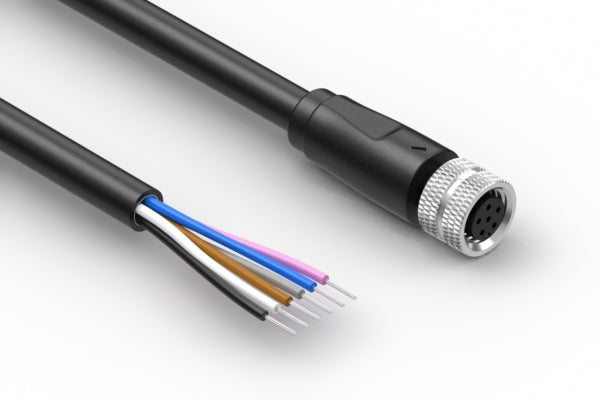

Cable, 500 mm, 0.7 mm 6C 50-01034 M8 socket to 5mm tinned, 26 AWG, 30-02981 wire
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | M series |
| connector style | jack → tinned |
| connector orientation | 180° |
| M type | M8 |
| # of conductors | 6 |
| # of connector contacts | 6 |
| connector center pin Ø | 0.7 mm |
| connector plating | gold |
| connector coding | A |
| locking style | thread lock |
| mounting style | cable mount |
| connector color | black |
| wire outer Ø | 5.6 mm |
| AWG | 26 |
| cable style | round |
| shield | unshielded |
| jacket material | PVC |
| bend radius | 33.6 mm |
| color | black |
| insulator color | brown + white + blue + black + gray + pink |
| cable length | 500 mm |
| operating temperature | -40~105 °C |
| voltage rating | 30 V |
| current rating | 1.0 A |
| cycle rating | 1000 |
| UL style | 20387 |
| connector 1 | 50-01034 |
| connector 2 | stripped and tinned |
| wire part # | 30-02981 |
| HTS code | 8544.42.9090 |
| Prop65 | Vinyl Chloride |
