Description

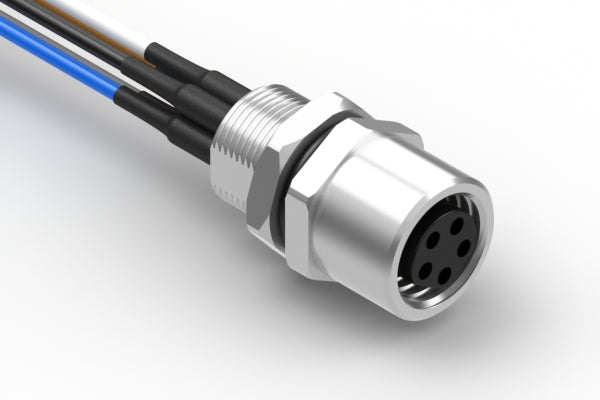

Cable, 305 mm, M8 5C socket panel mount 54-00319 to blunt cut, 24 AWG, UL 11028 hook-up wire

connector style jack → blunt cut
connector orientation 180°
# of conductors 5
# of connector contacts 5
connector center pin Ø 1.0 mm
connector plating gold
connector coding B
mounting style panel mount
connector color black
AWG 24
shield unshielded
insulator color brown, white, blue, black, gray
cable length 305 mm
operating temperature -40~105 °C
voltage rating 30 V
current rating 3.0 A
cycle rating 1000
UL style 11028
features panel mount
connector 1 54-00319
connector 2 blunt cut
HTS code 8544.42.9090
unit weight 19.00g
Prop65 Nickel
