Description

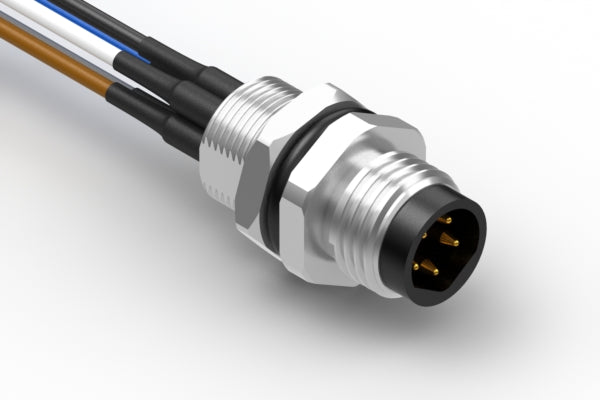

Cable, 305 mm, M8 B-code plug 5 pin panel mount 54-00318 to blunt cut, 24 AWG, UL11028, hook-up wire
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | M series |
| connector style | plug → blunt cut |
| connector orientation | 180° |
| M type | M8 |
| # of conductors | 5 |
| # of connector contacts | 5 |
| connector plating | gold |
| connector coding | B |
| mounting style | panel mount |
| connector color | black |
| wire outer Ø | 0.0 mm |
| AWG | 24 |
| shield | unshielded |
| bend radius | 0 mm |
| insulator color | white + black + blue + gray + brown |
| cable length | 305 mm |
| operating temperature | -40~105 °C |
| voltage rating | 30 V |
| current rating | 3.0 A |
| cycle rating | 1000 |
| UL style | 11028 |
| features | panel mount |
| connector 1 | 54-00318 |
| connector 2 | blunt cut |
| HTS code | 8544.42.9090 |
| unit weight | 4.83g |
| Prop65 | Nickel |
