Price:
Sale price$0.00

Description

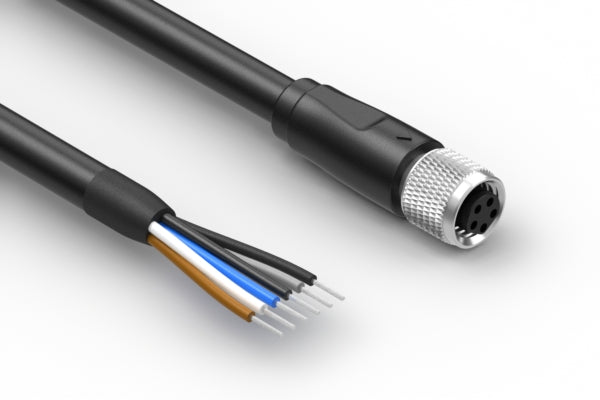

Cable, 3000 mm, 1.0 mm 5C 50-01006 M8 socket to 5mm tinned, 24 AWG, 30-02976 wire, shielded

connector style jack → tinned
connector orientation 180°
# of conductors 5
# of connector contacts 5
connector center pin Ø 1.0 mm
connector plating gold
connector coding B
locking style thread lock
mounting style cable mount
connector color black
wire outer Ø 6
AWG 24
cable style round
shield braid + foil
jacket material PVC
bend radius 36 mm
color black
insulator color brown + white + blue + black + gray
cable length 3000 mm
operating temperature -40~105 °C
voltage rating 30 V
current rating 3.0 A
cycle rating 1000
UL style 20387
connector 1 50-01006
connector 2 stripped and tinned
wire part # 30-02976
HTS code 8544.42.9090
Prop65 Vinyl Chloride
