Price:
Sale price$0.00

Description

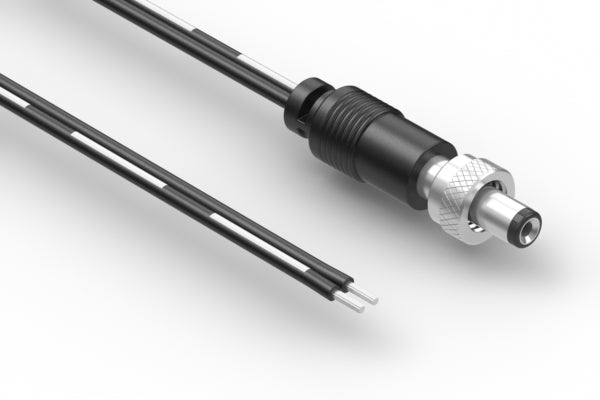

Cable, 4000 mm, 5.5x2.1x7.5mm 50-00010 locking dc plug to 5mm tinned, 18 AWG, UL2468, 30-00007 wire

connector type dc
connector style plug → tinned
connector orientation 180°
# of conductors 2
# of connector contacts 2
connector center pin Ø 2.1 mm
locking style thread lock
wire outer Ø 4.4 mm
AWG 18
cable style flat
shield unshielded
jacket material PVC
bend radius 13.2 mm
color black
cable length 4000 mm
operating temperature 80 °C
voltage rating 48 V
current rating 8.0 A
UL style 2468
connector 1 50-00010
connector 2 stripped and tinned
wire part # 30-00007
HTS code 8544.42.9090
unit weight 115.00g
Prop65 Vinyl Chloride
