Description
Description

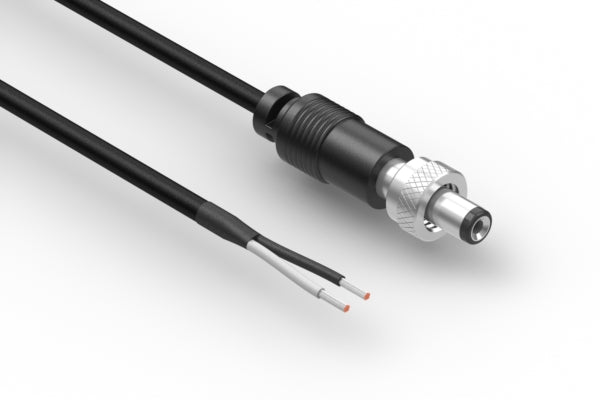

Cable, 6000 mm, 5.5x2.1x7.5mm 50-00010 locking dc plug to 5mm tinned, 18 AWG, UL1185, 30-00004 wire
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | dc |
| connector style | plug → tinned |
| connector orientation | 180° |
| # of conductors | 1 |
| # of connector contacts | 2 |
| locking style | Thread lock |
| wire outer Ø | 3.4 mm |
| AWG | 18 |
| cable style | round |
| shield | Spiral |
| bend radius | 20.4 mm |
| color | black |
| cable length | 6000 mm |
| operating temperature | -25~80 °C |
| voltage rating | 48 V |
| current rating | 8 A |
| UL style | 1185 |
| connector 1 | 50-00010 |
| connector 2 | stripped and tinned |
| wire part # | 30-00004 |
| HTS code | 8544.42.9090 |
| Prop65 | Vinyl Chloride |
