Description

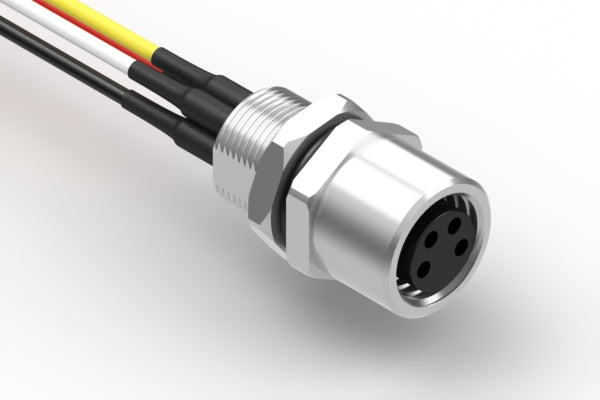

Cable, 305 mm, M8 4C socket panel mount 54-00297 to blunt cut, 24 AWG, UL 11028 hook-up wire

connector style jack → blunt cut
connector orientation 180°
# of conductors 4
# of connector contacts 4
connector center pin Ø 1.0 mm
connector plating gold
connector coding A
connector length 18.7 mm
mounting style panel mount
connector color black
AWG 24
cable style round
shield unshielded
insulator color red + black + white + yellow
cable length 305 mm
operating temperature -40~105 °C
voltage rating 30 V
current rating 3.0 A
cycle rating 1000
UL style 11028
features panel mount
connector 1 54-00297
connector 2 blunt cut
HTS code 8544.42.9090
Prop65 Nickel
