Price:
Sale price$0.00

Description

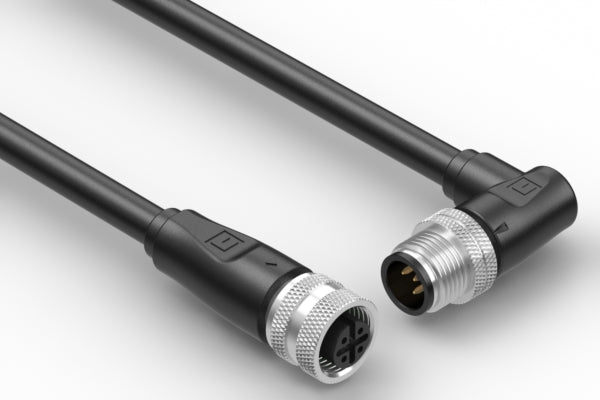

Cable, 500 mm, 1.0 mm 5C 90° 50-00988 M12 plug to 1.0 mm 50-00981 M12 socket, 22 AWG, 30-01586 wire

connector type M series
connector style plug → jack
connector orientation 90°
M type M12
# of conductors 5
# of connector contacts 5
connector center pin Ø 1.0 mm
connector plating gold
connector coding A
connector length 22.0 mm
mounting style cable mount
connector color black
AWG 22
cable style round
shield braid + foil
jacket material PVC
bend radius 39 mm
color black
insulator color white, black, red, yellow, blue
cable length 500 mm
operating temperature -40~105 °C
voltage rating 60 V
current rating 4.0 A
cycle rating 500
UL style 20387
features thread lock
connector 1 50-00988
connector 2 50-00981
wire part # 30-01586
HTS code 8544.42.9090
unit weight 63.60g
Prop65 Vinyl Chloride
