Description
Description

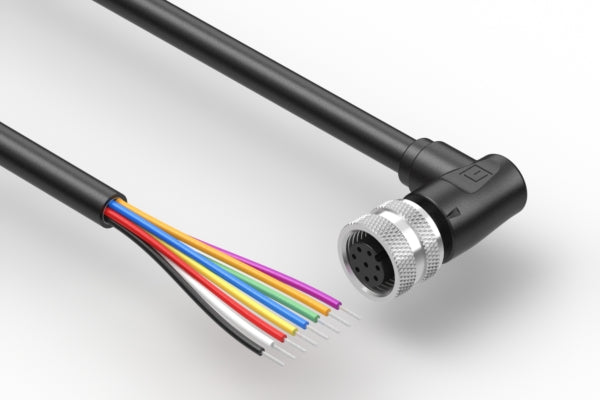

Cable, 3000 mm, 0.8 mm 8C 90° 50-00955 M12 socket to 5 mm tinned, 24 AWG, 30-01691 wire
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector style | jack to tinned |
| connector orientation | 90° |
| # of conductors | 8 |
| # of connector contacts | 8 |
| connector center pin Ø | 0.8 mm |
| connector plating | gold |
| connector coding | A |
| connector length | 22.0 mm |
| locking style | Thread lock |
| mounting style | cable mount |
| connector color | black |
| wire outer Ø | 6.4 mm |
| AWG | 24 |
| cable style | round |
| shield | unshielded |
| jacket material | PVC |
| color | black |
| insulator color | white + black + red + yellow + blue + green + orange + purple |
| cable length | 3000 mm |
| operating temperature | -40~105 °C |
| voltage rating | 30 V |
| current rating | 2.0 A |
| cycle rating | 500 cycles |
| UL style | 20387 |
| features | thread lock |
| connector 1 | 50-00955 |
| wire part # | 30-01691 |
| HTS code | 8544.42.9090 |
| unit weight | 204.40g |
| Prop65 | Vinyl Chloride |
