Description

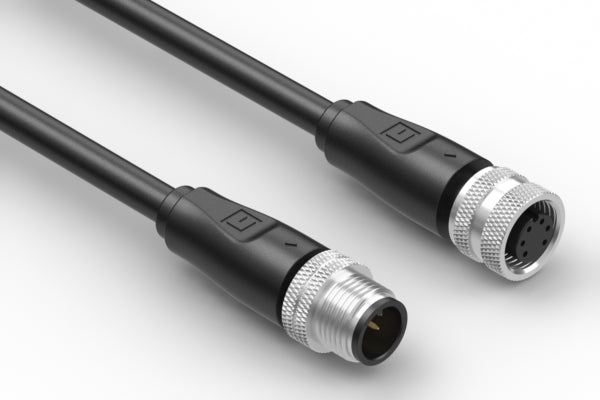

Cable, 10000 mm, 0.8 mm 6C 50-00954 M12 socket to 0.8 mm 50-00961 M12 plug, 24 AWG, 30-01675 wire

connector type M series
connector style plug → jack
connector orientation 180°
M type M12
# of conductors 6
# of connector contacts 6
connector center pin Ø 0.8 mm
connector plating gold
connector coding A
connector length 22.0 mm
locking style thread lock
mounting style cable mount
connector color black
wire outer Ø 5.9
AWG 24
cable style round
shield unshielded
jacket material PVC
bend radius 35.4 mm
color black
insulator color white + black + red + yellow + blue + green
cable length 10000 mm
operating temperature -40~105 °C
voltage rating 30 V
current rating 2.0 A
cycle rating 500
UL style 20387
connector 1 50-00954
connector 2 50-00961
wire part # 30-01675
HTS code 8544.42.9090
Prop65 Vinyl Chloride
