Description

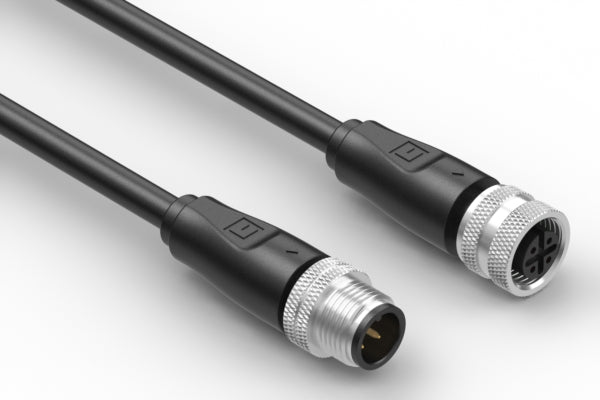

Cable, 5000 mm, 1.0 mm 4C 50-00952 M12 socket to 1.0 mm 50-00959 M12 plug, 22 AWG, 30-01658 wire

connector type M series
connector style plug → jack
connector orientation 180°
M type M12
# of conductors 4
# of connector contacts 4
connector center pin Ø 1.0 mm
connector plating gold
connector coding A
connector length 22.0 mm
mounting style cable mount
connector color black
AWG 22
cable style round
shield unshielded
jacket material PVC
bend radius 33.6 mm
color black
insulator color white, black, red, yellow
cable length 5000 mm
operating temperature -40~105 °C
voltage rating 250 V
current rating 4.0 A
cycle rating 500
UL style 20387
features thread lock
connector 1 50-00952
connector 2 50-00959
wire part # 30-01658
HTS code 8544.42.9090
unit weight 283.00g
Prop65 Vinyl Chloride
