Description

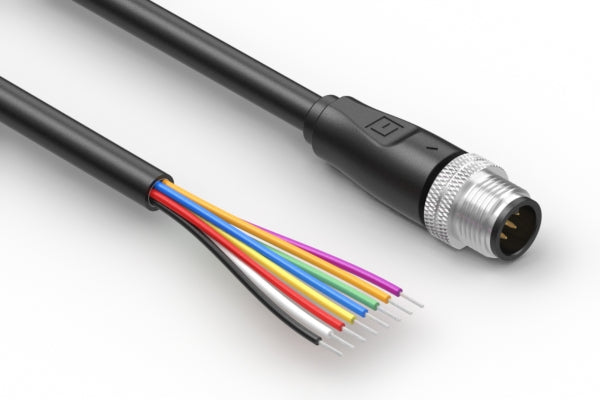

Cable, 10000 mm, 0.8 mm 8C 50-00962 M12 plug to 5 mm tinned, 24 AWG, 30-01691 wire

connector type M series
connector style plug → tinned
connector orientation 180°
M type M12
# of conductors 8
# of connector contacts 8
connector center pin Ø 0.8 mm
connector plating gold
connector coding A
connector length 22.0 mm
mounting style cable mount
connector color black
AWG 24
cable style round
shield unshielded
jacket material PVC
bend radius 38.4 mm
color black
insulator color white + black + red + yellow + blue + green + orange + purple
cable length 10000 mm
operating temperature -40~105 °C
voltage rating 30 V
current rating 2.0 A
cycle rating 500
UL style 20387
features thread lock
connector 1 50-00962
wire part # 30-01691
HTS code 8544.42.9090
Prop65 Vinyl Chloride
