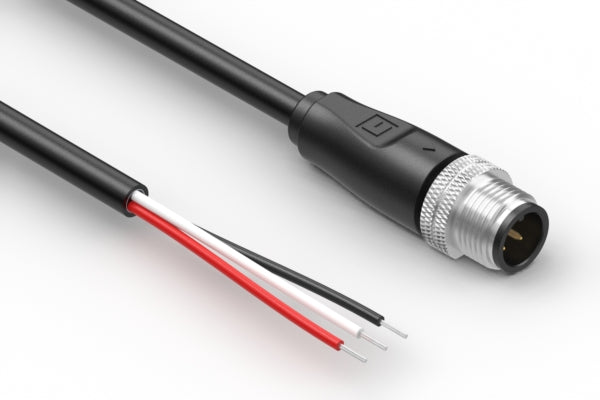

Cable, 10000 mm, 1.0 mm 3C 50-00958 M12 plug to 5 mm tinned, 22 AWG, 30-01650 wire
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | M series |
| connector style | plug → tinned |
| connector orientation | 180° |
| M type | M12 |
| # of conductors | 3 |
| # of connector contacts | 3 |
| connector plating | gold |
| connector length | 22.0 mm |
| locking style | Thread lock |
| mounting style | cable mount |
| connector color | black |
| wire outer Ø | 5.2 mm |
| AWG | 22 |
| cable style | round |
| shield | unshielded |
| jacket material | PVC |
| bend radius | 31.2 mm |
| color | black |
| insulator color | white + black + red |
| cable length | 10000 mm |
| voltage rating | 250 V |
| current rating | 4.0 A |
| cycle rating | 500 |
| UL style | 20387 |
| connector 1 | 50-00958 |
| wire part # | 30-01650 |
| HTS code | 8544.42.9090 |
| Prop65 | Vinyl Chloride |
