Price:
Sale price$0.00

Description

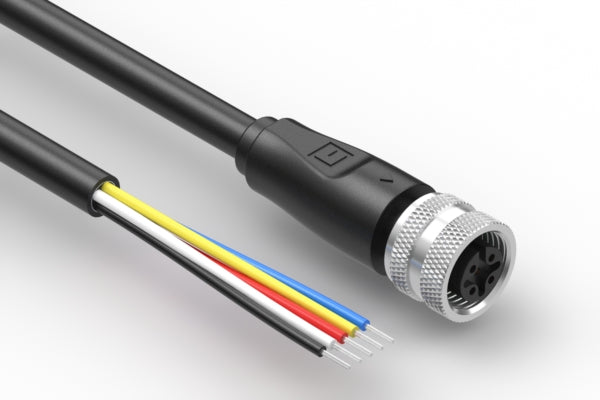

Cable, 10000 mm, 1.0 mm 5C 50-00953 M12 socket to 5 mm tinned, 22 AWG, 30-01666 wire

connector type M series
connector style jack → tinned
connector orientation 180°
M type M12
# of conductors 5
# of connector contacts 5
connector center pin Ø 1.0 mm
connector plating gold
connector coding A
connector length 22.0 mm
locking style thread lock
mounting style cable mount
connector color black
AWG 22
cable style round
shield unshielded
jacket material PVC
bend radius 36.6 mm
color black
insulator color white + black + red + yellow + blue
cable length 10000 mm
operating temperature -40~105 °C
voltage rating 60 V
current rating 4.0 A
cycle rating 500
UL style 20387
connector 1 50-00953
wire part # 30-01666
HTS code 8544.42.9090
Prop65 Vinyl Chloride
