Description
Description

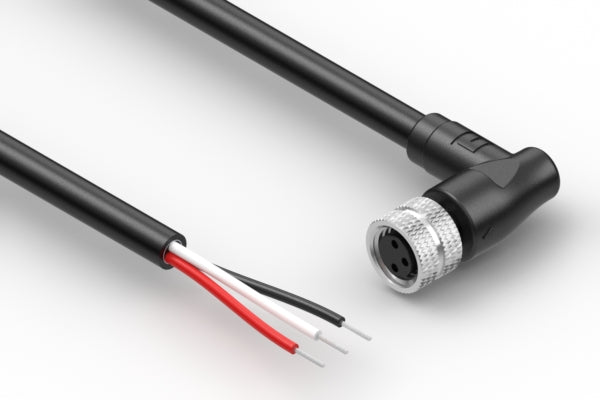

Cable, 5000 mm, 1.0 mm 3C 90° 50-00677 M8 socket to 1.0 mm 50-00677 M8 socket, 24 AWG, 30-01651 wire
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | M series |
| connector style | socket to socket |
| connector orientation | 90° |
| M type | M8 |
| # of conductors | 3 |
| # of connector contacts | 3 |
| connector center pin Ø | 1.0 mm |
| connector plating | gold |
| connector length | 15.3 mm |
| locking style | Thread lock |
| mounting style | molding |
| connector color | black |
| wire outer Ø | 4.8 mm |
| AWG | 24 |
| cable style | round |
| shield | unshielded |
| bend radius | 28.8 mm |
| color | BLACK |
| insulator color | White, Black, Red |
| cable length | 5000 mm |
| voltage rating | 60 V |
| current rating | 3.0 A |
| cycle rating | 1000 |
| UL style | (241, '20387') |
| connector 1 | 50-00677 |
| connector 2 | 50-00677 |
| wire part # | 30-01651 |
| HTS code | 8544.42.9090 |
| Prop65 | Vinyl Chloride |
