Description

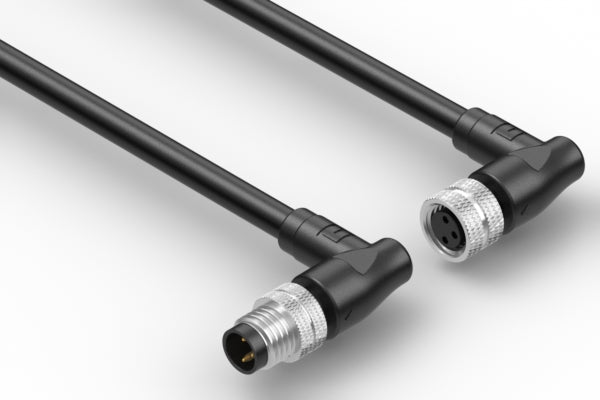

Cable, 3000 mm, 1.0 mm 3C 90° 50-00677 M8 socket to 1.0 mm 90° 50-00675 M8 plug, 24 AWG, 30-01651

connector type M series
connector style jack → plug
connector orientation 90°
M type M8
# of conductors 3
# of connector contacts 3
connector center pin Ø 1.0 mm
connector plating gold
connector coding A
connector length 15.3 mm
mounting style cable mount
connector color black
wire outer Ø 4.8 mm
AWG 24
cable style round
shield unshielded
jacket material PVC
bend radius 28.8 mm
color black
insulator color white, black, red
cable length 3000 mm
operating temperature -40~105 °C
voltage rating 60 V
current rating 3.0 A
cycle rating 1000
UL style 20387
features thread lock
connector 1 50-00677
connector 2 50-00675
wire part # 30-01651
HTS code 8544.42.9090
Prop65 Vinyl Chloride
