Price:
Sale price$0.00

Description

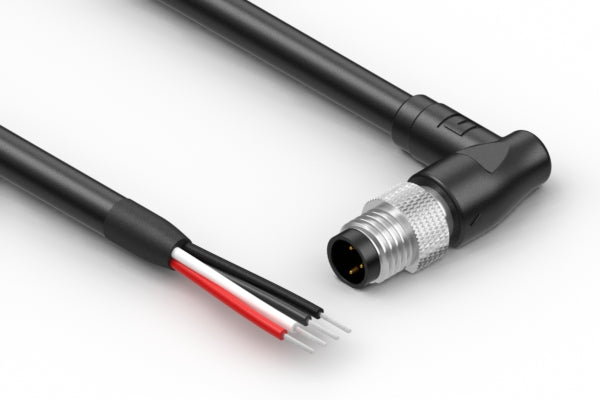

Cable, 1500 mm, 1.0 mm 3C 90° 50-00679 M8 plug to 5mm tinned, 24 AWG, 30-01571 wire, shielded

connector type M series
connector style plug → tinned
connector orientation 90°
M type M8
# of conductors 3
# of connector contacts 3
connector center pin Ø 1.0 mm
connector plating gold
connector coding A
connector length 19.2 mm
locking style thread lock
mounting style cable mount
connector color black
wire outer Ø 5.2
AWG 24
cable style round
shield braid + foil
jacket material PVC
bend radius 31.2 mm
color black
insulator color white + black + red
cable length 1500 mm
operating temperature -40~105 °C
voltage rating 60 V
current rating 3.0 A
cycle rating 1000
UL style 20387
connector 1 50-00679
connector 2 stripped and tinned
wire part # 30-01571
HTS code 8544.42.9090
Prop65 Vinyl Chloride
