Description

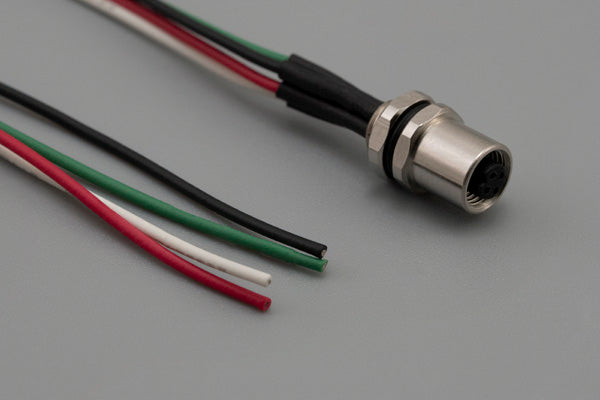

Cable, 305 mm, M5 4C socket panel mount 54-00105 to blunt cut, 26 AWG, UL 11028 hook-up wire
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | M series |
| connector style | jack → blunt cut |
| connector orientation | 180° |
| M type | M5 |
| # of conductors | 4 |
| # of connector contacts | 4 |
| connector plating | gold |
| connector length | 13.7 mm |
| mounting style | panel mount |
| connector color | black |
| wire outer Ø | 1.0 mm |
| AWG | 26 |
| cable style | round |
| shield | unshielded |
| bend radius | 6 mm |
| insulator color | white + black + red + green |
| cable length | 305 mm |
| voltage rating | 60 V |
| current rating | 1.0 A |
| cycle rating | 500 |
| UL style | 11028 |
| features | panel mount |
| connector 1 | 54-00105 |
| connector 2 | blunt cut |
| HTS code | 8544.42.9090 |
| unit weight | 2.10g |
| Prop65 | Nickel |
