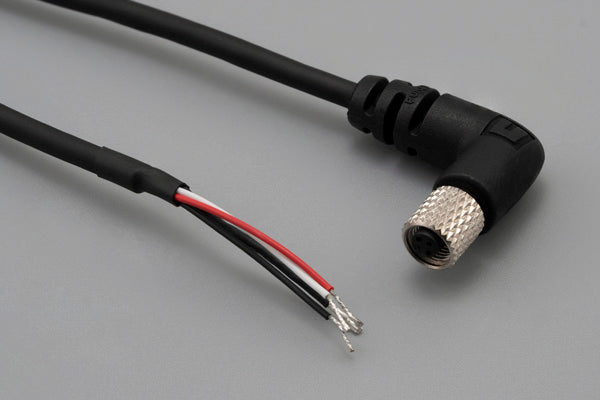

Cable, 1830 mm, 0.5 mm 3C 90° 50-00672 M5 socket to 5 mm tinned, 28 AWG, 30-01638 wire, IP67, shield
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | M series |
| connector style | jack → tinned |
| connector orientation | 90° |
| M type | M5 |
| # of conductors | 3 |
| # of connector contacts | 3 |
| connector center pin Ø | 0.5 mm |
| connector plating | gold |
| connector coding | A |
| connector length | 7.6 mm |
| locking style | thread lock |
| mounting style | cable mount |
| connector color | black |
| wire outer Ø | 2.8 mm |
| AWG | 28 |
| cable style | round |
| shield | spiral + foil |
| jacket material | TPU |
| bend radius | 16.8 mm |
| color | black |
| insulator color | red + black + white |
| cable length | 1830 mm |
| operating temperature | -40~70 °C |
| voltage rating | 60 V |
| current rating | 1.0 A |
| cycle rating | 500 |
| connector 1 | 50-00672 |
| connector 2 | stripped and tinned |
| wire part # | 30-01638 |
| HTS code | 8544.42.9090 |
| Prop65 | Nickel |
