Description

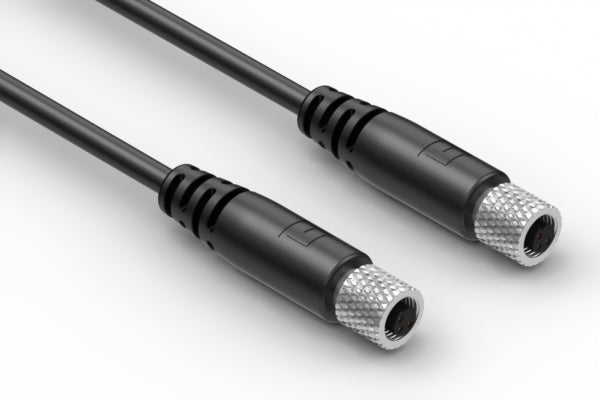

Cable, 1830 mm, 0.5 mm 3C 50-00672 M5 socket to same, 28 AWG, 30-01638 wire, IP67, shielded

connector type M series
connector style jack → jack
connector orientation 180°
M type M5
# of conductors 3
# of connector contacts 3
connector center pin Ø 0.5 mm
connector plating gold
connector coding A
connector length 7.6 mm
locking style thread lock
mounting style cable mount
connector color black
wire outer Ø 2.8
AWG 28
cable style round
shield spiral + foil
jacket material TPU
bend radius 16.8 mm
color black
insulator color red + black + white
cable length 1830 mm
operating temperature -40~70 °C
voltage rating 60 V
current rating 1.0 A
cycle rating 500
connector 1 50-00672
connector 2 50-00672
wire part # 30-01638
HTS code 8544.42.9090
Prop65 Nickel
