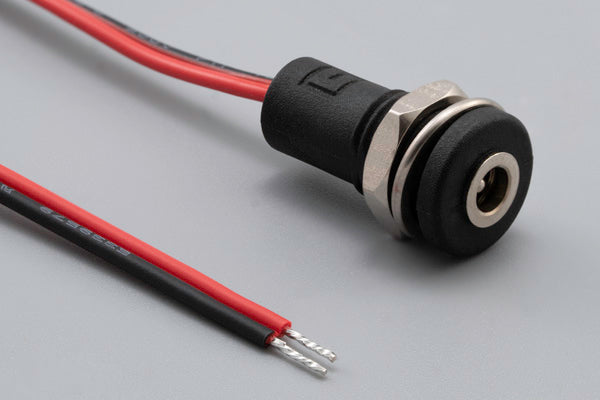

Cable, 305 mm, 3.5x1.1 mm 50-00674 dc panel mount jack to stripped and tinned, 24 AWG, 30-00804
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | dc |
| connector style | jack → tinned |
| connector orientation | 180° |
| # of conductors | 2 |
| # of connector contacts | 2 |
| connector center pin Ø | 1.35 mm |
| connector outer Ø | 3.5 mm |
| connector plating | nickel |
| connector length | 16.5 mm |
| mounting style | panel mount, front |
| connector color | black |
| wire outer Ø | 4.4 mm |
| AWG | 24 |
| cable style | flat |
| shield | unshielded |
| jacket material | PVC |
| bend radius | 13.2 mm |
| color | red + black |
| cable length | 305 mm |
| operating temperature | -40~105 °C |
| voltage rating | 48 V |
| current rating | 4.5 A |
| UL style | 2651 |
| features | panel mount |
| connector 1 | 50-00674 |
| connector 2 | stripped and tinned |
| wire part # | 30-00804 |
| HTS code | 8544.42.9090 |
| unit weight | 7.60g |
| Prop65 | Vinyl Chloride |
