Price:
Sale price$0.00

Description

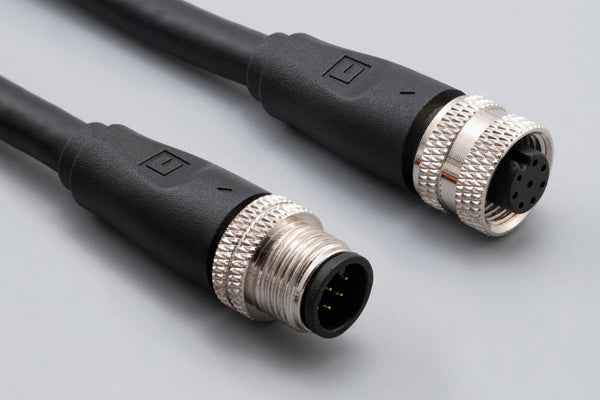

Cable, 10000 mm, 0.8 mm 8C 50-00983 M12 socket to 0.8 mm 50-00990 M12 plug, 24 AWG, 30-01611 wire

connector type M series
connector style plug → jack
connector orientation 180°
M type M12
# of conductors 8
# of connector contacts 8
connector center pin Ø 0.8 mm
connector plating gold
connector coding A
connector length 22 mm
mounting style cable mount
connector color black
AWG 24
cable style round
shield braid + foil
jacket material PVC
bend radius 40.8 mm
color black
insulator color red, black, white, yellow, blue, green, orange, purple
cable length 10000 mm
operating temperature -40~105 °C
voltage rating 30 V
current rating 2.0 A
cycle rating 500
UL style 20387
connector 1 50-00983
connector 2 50-00990
wire part # 30-01611
HTS code 8544.42.9090
unit weight 791.67g
Prop65 Vinyl Chloride
