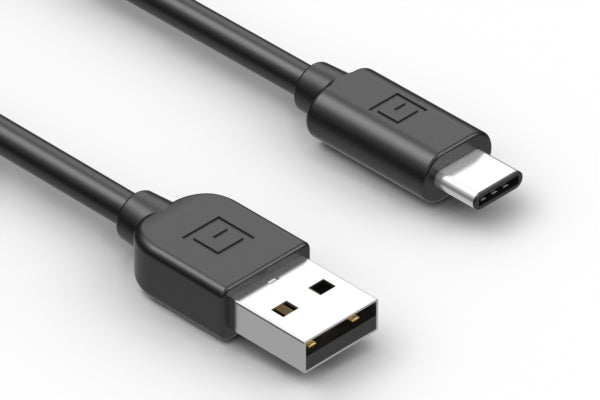

Cable, 1500 mm, USB 3.1 C Male 50-00477 to USB A Male 50-00574, USB 2.0, 30-01385 wire
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | usb |
| connector style | plug → plug |
| connector orientation | 180° |
| # of conductors | 4 |
| connector plating | nickel |
| wire outer Ø | 4.2 mm |
| AWG | 26 |
| cable style | round |
| shield | braid + foil |
| jacket material | TPE |
| bend radius | 25.2 mm |
| color | black |
| insulator color | red + black + white + green |
| cable length | 1500 mm |
| voltage rating | 5 V |
| current rating | 0.5 A |
| connector 1 | 50-00477 |
| connector 2 | 50-00574 |
| wire part # | 30-01385 |
| HTS code | 8544.42.9090 |
| unit weight | 41.67g |
| Prop65 | Nickel |
