Description
Description

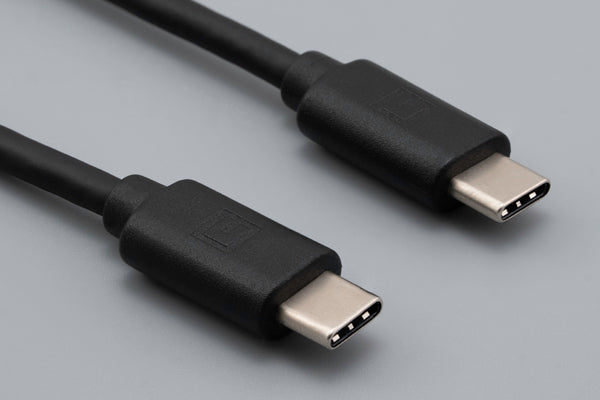

Cable, 1000 mm, USB 3.1 C Male 50-00477 to same, USB 3.1, 30-01379 wire
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | usb |
| connector style | plug → plug |
| connector orientation | 180° |
| # of conductors | 16 |
| connector plating | nickel |
| wire outer Ø | 4.2 mm |
| AWG | 24 |
| cable style | round |
| shield | braid + foil |
| jacket material | TPE |
| bend radius | 25.2 mm |
| color | black |
| cable length | 1000 mm |
| voltage rating | 20 V |
| current rating | 3.0 A |
| connector 1 | 50-00477 |
| connector 2 | 50-00477 |
| wire part # | 30-01379 |
| HTS code | 8544.42.9090 |
| unit weight | 36.45g |
| Prop65 | Nickel |
