Description
Description

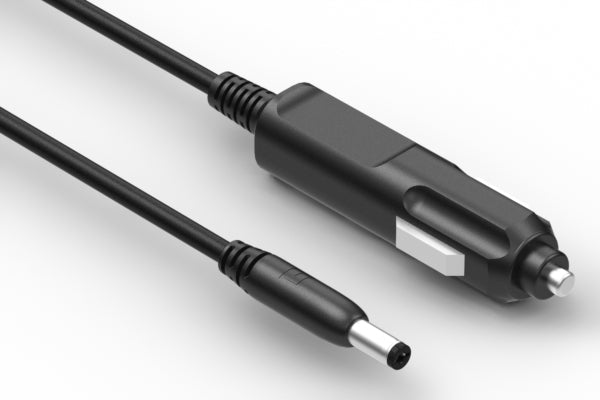

Cable, 1830 mm, 5.5x2.1x12 mm 50-00024 dc plug to car adapter, 20 AWG, UL2464, 30-00686 wire
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | dc → car adapter |
| connector style | plug → plug |
| connector orientation | 180° |
| # of conductors | 2 |
| # of connector contacts | 2 |
| connector center pin Ø | 2.1 mm |
| connector outer Ø | 5.5 mm |
| connector plating | nickel |
| connector length | 12.0 mm |
| connector color | black |
| wire outer Ø | 4.7 mm |
| AWG | 20 |
| cable style | round |
| shield | unshielded |
| jacket material | PVC |
| bend radius | 28.2 mm |
| color | black |
| insulator color | black + red |
| cable length | 1830 mm |
| UL style | 2464 |
| connector 1 | 50-00024 |
| connector 2 | car adapter |
| wire part # | 30-00686 |
| HTS code | 8544.42.9090 |
| Prop65 | Nickel |
