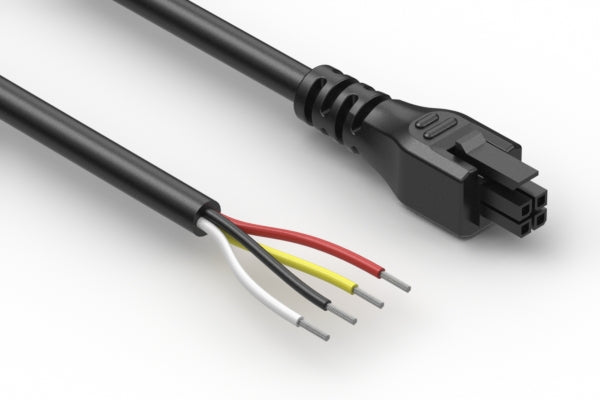

Cable, 1000 mm, 4C, 3.0 mm pitch dual row rectangular housing socket to stripped tinned, overmold
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | rectangular |
| connector style | jack → tinned |
| connector orientation | 180° |
| # of conductors | 4 |
| # of connector contacts | 4 |
| connector length | 14.1 mm |
| locking style | Latch lock |
| connector color | black |
| wire outer Ø | 5.3 mm |
| AWG | 20 |
| cable style | round |
| shield | unshielded |
| bend radius | 31.8 mm |
| color | black |
| insulator color | white + black + red + yellow |
| cable length | 1000 mm |
| UL style | 2464 |
| connector 1 | 50-00933 |
| connector 2 | stripped and tinned |
| wire part # | 30-00383 |
| Prop65 | Nickel |
