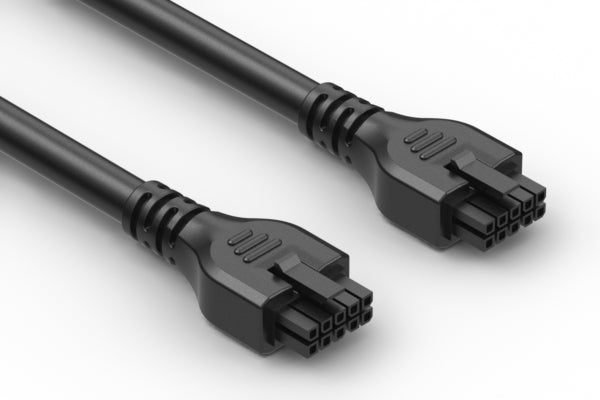

Cable, 1000 mm, 10C, 3.0 mm pitch dual row rectangular housing socket to same, overmold, 20 AWG, 30-01337
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | rectangular |
| connector style | jack → jack |
| connector orientation | 180° |
| # of conductors | 10 |
| # of connector contacts | 10 |
| connector length | 14.1 mm |
| locking style | Latch lock |
| mounting style | cable mount |
| connector color | black |
| wire outer Ø | 7.8 mm |
| AWG | 20 |
| cable style | round |
| shield | unshielded |
| jacket material | PVC |
| bend radius | 46.8 mm |
| color | black |
| insulator color | white + black + red + yellow + blue + green + orange + purple + gray + brown |
| cable length | 1000 mm |
| operating temperature | -25~80 °C |
| voltage rating | 300 V |
| current rating | 7.0 A |
| UL style | 2464 |
| connector 1 | 430251000 |
| connector 2 | 430251000 |
| wire part # | 30-01337 |
| HTS code | 8544.42.9090 |
| Prop65 | Nickel |
