Description

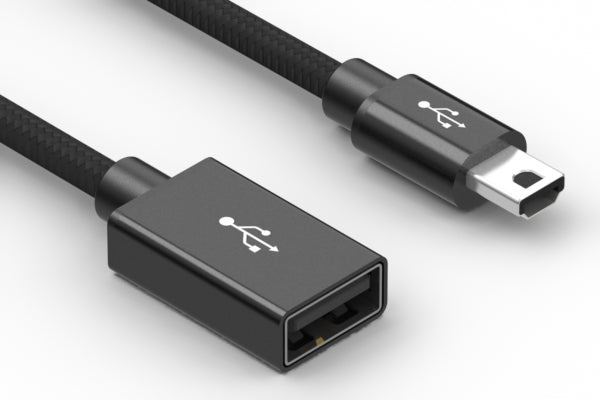

Cable, 1000 mm, 50-00576 USB A receptacle to 50-00578 USB A mini plug, 28 AWG, nylon braided
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | usb |
| connector style | plug → jack |
| connector orientation | 180° |
| # of conductors | 4 |
| # of connector contacts | 5 |
| wire outer Ø | 4.1 mm |
| AWG | 28 |
| cable style | round |
| shield | braid + foil |
| jacket material | PVC |
| bend radius | 24.6 mm |
| color | black |
| cable length | 1000 mm |
| operating temperature | 80 °C |
| UL style | 2725 |
| connector 1 | 50-00576 |
| connector 2 | 50-00578 |
| wire part # | 30-01272 |
| HTS code | 8544.42.9090 |
| Prop65 | Vinyl Chloride |
