Description
Description

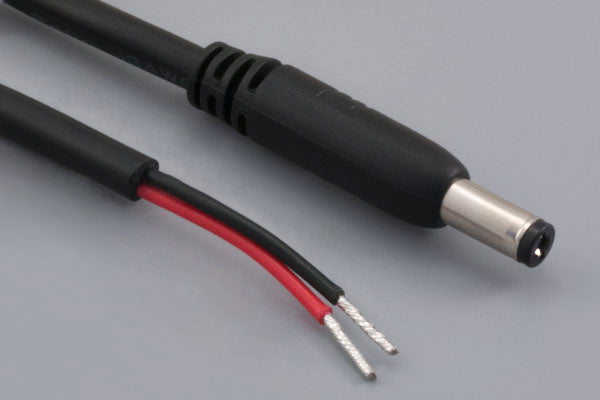

Cable, 3050 mm, 5.5x2.5x12 mm 50-00026 dc plug to stripped tinned, 16 AWG, 30-00680 wire
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | dc |
| connector style | plug → tinned |
| connector orientation | 180° |
| # of conductors | 2 |
| # of connector contacts | 2 |
| connector outer Ø | 5.5 mm |
| wire outer Ø | 6.1 mm |
| AWG | 16 |
| cable style | round |
| shield | unshielded |
| jacket material | PVC |
| bend radius | 36.6 mm |
| color | black |
| insulator color | black + red |
| cable length | 3050 mm |
| operating temperature | 80 °C |
| voltage rating | 48 V |
| current rating | 8 A |
| UL style | 2464 |
| connector 1 | 50-00026 |
| connector 2 | stripped and tinned |
| wire part # | 30-00680 |
| HTS code | 8544.42.9090 |
| Prop65 | Vinyl Chloride |
