Price:
Sale price$0.00

Description

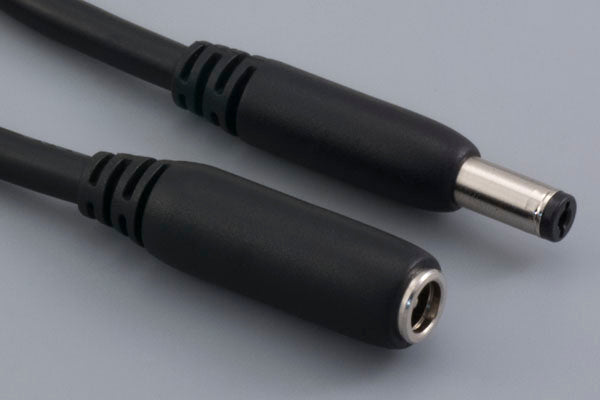

Cable, 3050 mm, 5.5x2.1x12 mm 50-00024 dc plug to 5.5x2.1 mm 50-00025 dc jack, 18 AWG, 30-00683 wire

connector type dc
connector style plug → jack
connector orientation 180°
# of conductors 2
# of connector contacts 2
connector center pin Ø 2.1 mm
connector outer Ø 5.5 mm
wire outer Ø 5.2 mm
AWG 18
cable style round
shield unshielded
jacket material PVC
bend radius 31.2 mm
color black
insulator color red + black
cable length 3050 mm
operating temperature 80 °C
voltage rating 48 V
current rating 7.0 A
UL style 2464
connector 1 50-00024
connector 2 50-00025
wire part # 30-00683
HTS code 8544.42.9090
unit weight 150.00g
Prop65 Vinyl Chloride
