Description
Description

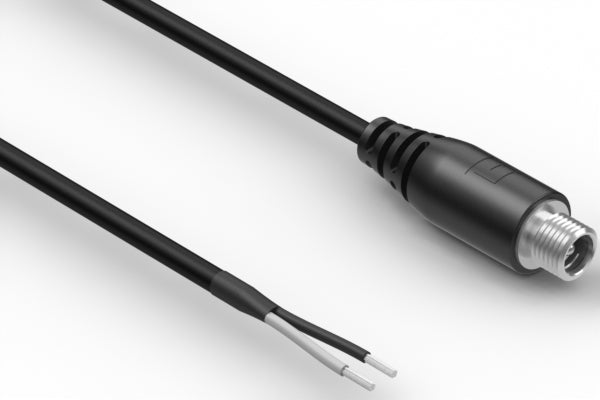

Cable, 2000 mm, 5.5x2.1 50-00616 locking dc jack to 5mm tinned, 18 AWG, UL1185, 30-00004 wire
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | dc |
| connector style | jack → tinned |
| connector orientation | 180° |
| # of conductors | 1 |
| # of connector contacts | 2 |
| connector center pin Ø | 2.1 mm |
| locking style | thread lock |
| wire outer Ø | 3.4 mm |
| AWG | 18 |
| cable style | round |
| shield | spiral |
| jacket material | PVC |
| bend radius | 20.4 mm |
| color | black |
| insulator color | white |
| cable length | 2000 mm |
| UL style | 1185 |
| connector 1 | 50-00616 |
| connector 2 | stripped and tinned |
| wire part # | 30-00004 |
| HTS code | 8544.42.9090 |
| unit weight | 59.60g |
| Prop65 | Vinyl Chloride |
