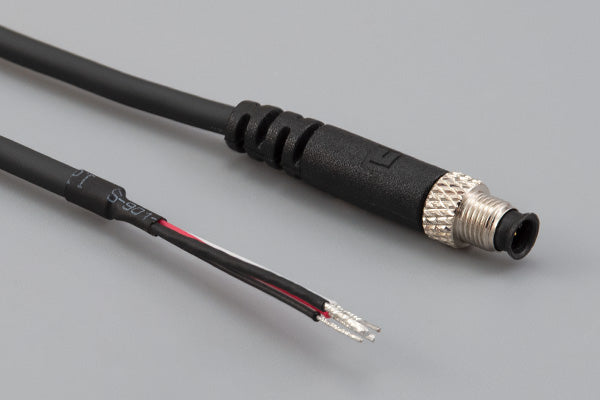

Cable, 1830 mm, 5x0.5 mm 4C 50-00602 M5 plug to 5 mm tinned, 28 AWG, 30-00495 wire, IP67
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | M series |
| connector style | plug → tinned |
| connector orientation | 180° |
| M type | M5 |
| # of conductors | 3 |
| # of connector contacts | 4 |
| connector plating | gold |
| connector coding | A |
| locking style | thread lock |
| connector color | black |
| wire outer Ø | 2.8 mm |
| AWG | 28 |
| cable style | round |
| shield | spiral |
| jacket material | TPU |
| bend radius | 16.8 mm |
| color | black |
| insulator color | black + red + white |
| cable length | 1830 mm |
| voltage rating | 60 V |
| current rating | 1.0 A |
| connector 1 | 50-00602 |
| connector 2 | stripped and tinned |
| wire part # | 30-00495 |
| HTS code | 8544.42.9090 |
| unit weight | 24.93g |
| Prop65 | Nickel |
