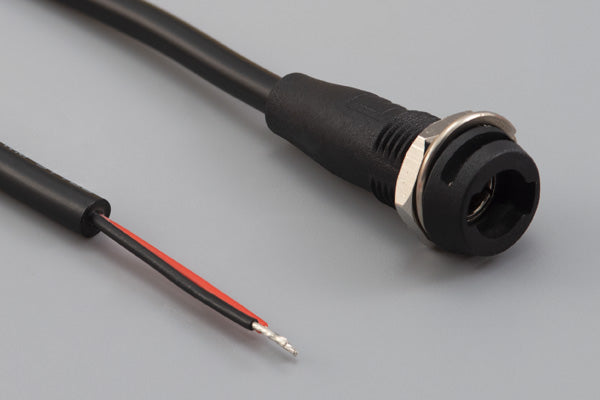

Cable, 305 mm, 5.5x2.5 mm 50-00153 dc jack twist lock panel mount to 5 mm tinned, 22 AWG
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | dc |
| connector style | jack → tinned |
| connector orientation | 180° |
| # of conductors | 2 |
| # of connector contacts | 2 |
| connector center pin Ø | 2.5 mm |
| locking style | Twist lock |
| mounting style | panel mount, front |
| wire outer Ø | 4.3 mm |
| AWG | 22 |
| cable style | round |
| jacket material | PVC |
| bend radius | 25.8 mm |
| color | black |
| cable length | 305 mm |
| voltage rating | 48 V |
| current rating | 6 A |
| UL style | 2464 |
| connector 1 | 50-00153 |
| connector 2 | stripped and tinned |
| wire part # | 30-00689 |
| HTS code | 8544.42.9090 |
| unit weight | 15.00g |
| Prop65 | Vinyl Chloride |
