Description

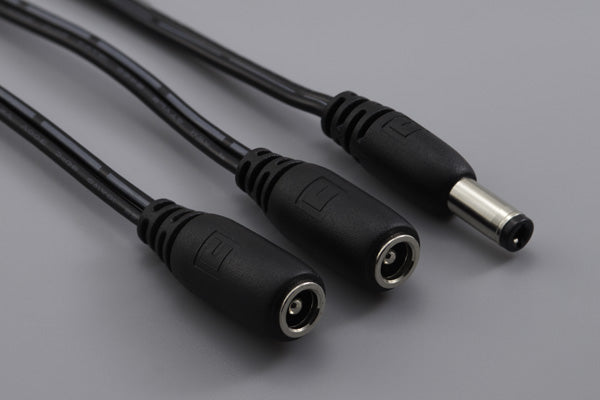

Cable, 450 mm, 5.5x2.1x12 mm 50-00024 dc plug to y-split to 2x 5.5x2.1 mm 50-00025 dc jack, 18 AWG

connector type dc
connector style plug → jack
connector orientation 180°
# of conductors 2
# of connector contacts 2
connector center pin Ø 2.1 mm
connector outer Ø 5.5 mm
AWG 18
cable style flat
jacket material PVC
bend radius 13.2 mm
color black
cable length 450 mm
operating temperature 80 °C
voltage rating 48 V
current rating 7.0 A
UL style 2468
connector 1 50-00024
connector 2 50-00025
wire part # 30-00007
HTS code 8544.42.9090
unit weight 35.33g
Prop65 Vinyl Chloride
